Cosse cuivre à double trou CL-2H
Application :
Accessoire utilisé pour établir des connexions électriques. Couramment appliqué dans la commande électrique, la distribution d'énergie, la protection par relais, l'électronique de puissance, les appareils électroménagers, la production d'électricité, etc.
Matériau :
Cu ≥ 99,9 %
Surface :
Étamage

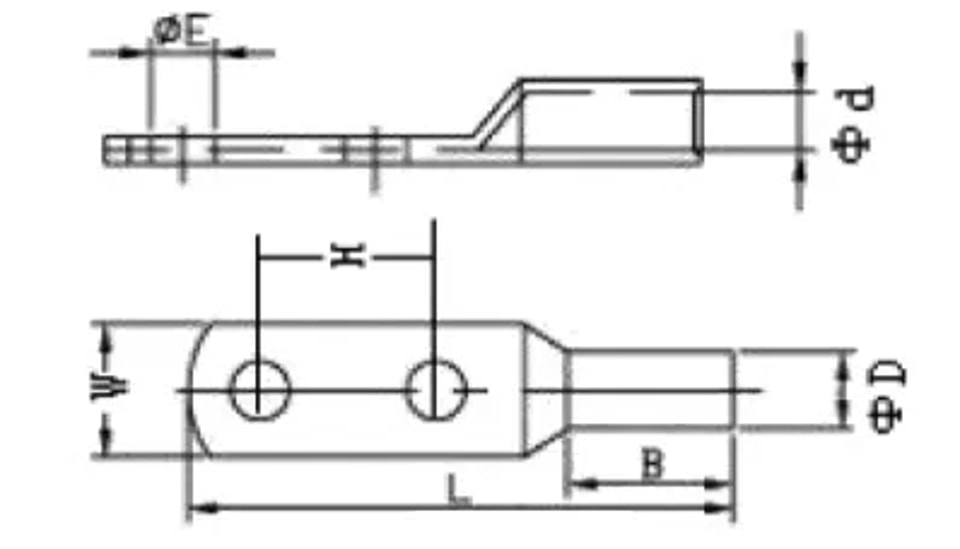

Plan coté :
Paramètre
Réf. article | Dimensions (mm) | ||||||
ΦE±0.2 | ΦD±0.4 | Φd±0.4 | W±0.8 | B±0.8 | L±0.8 | H±0.8 | |
CL14-2H-6 | 6.4 | 8.8 | 5.8 | 13.0 | 28.5 | 117.5 | 45.0 |
CL14-2H-8 | 8.4 | 8.8 | 5.8 | 13.0 | 28.5 | 117.5 | 45.0 |
CL14-2H-10 | 10.5 | 8.8 | 5.8 | 15.0 | 28.5 | 117.5 | 45.0 |
CL22-2H-6 | 6.4 | 11.3 | 7.7 | 16.0 | 28.5 | 119.2 | 45.0 |
CL22-2H-8 | 8.4 | 11.3 | 7.7 | 16.0 | 28.5 | 119.2 | 45.0 |
CL22-2H-10 | 10.5 | 11.3 | 7.7 | 16.0 | 28.5 | 119.2 | 45.0 |
CL22-2H-12 | 13.0 | 11.3 | 7.7 | 18.3 | 28.5 | 119.2 | 45.0 |
CL38-2H-8 | 8.5 | 12.4 | 9.8 | 18.3 | 31.7 | 120.0 | 45.0 |
CL38-2H-10 | 10.5 | 12.4 | 9.8 | 18.3 | 31.7 | 120.0 | 45.0 |
CL38-2H-12 | 13.0 | 12.4 | 9.8 | 18.3 | 31.7 | 120.0 | 45.0 |
CL60-2H-8 | 8.5 | 14.0 | 11.0 | 20.5 | 40.0 | 130.0 | 45.0 |
CL60-2H-10 | 10.5 | 14.0 | 11.0 | 20.5 | 40.0 | 130.0 | 45.0 |
CL60-2H-12 | 13.0 | 14.0 | 11.0 | 20.5 | 40.0 | 130.0 | 45.0 |
CL70-2H-10 | 10.5 | 15.0 | 12.0 | 21.4 | 40.0 | 130.0 | 45.0 |
CL70-2H-12 | 13.0 | 15.0 | 12.0 | 21.4 | 40.0 | 130.0 | 45.0 |
CL70-2H-14 | 15.0 | 15.0 | 12.0 | 21.4 | 40.0 | 130.0 | 45.0 |
CL80-2H-12 | 13.0 | 16.0 | 13.0 | 23.2 | 40.0 | 130.0 | 45.0 |
CL100-2H-10 | 10.5 | 18.5 | 14.0 | 26.0 | 42.0 | 132.0 | 45.0 |
CL100-2H-12 | 13.0 | 18.0 | 14.0 | 26.0 | 42.0 | 132.0 | 45.0 |
CL100-2H-14 | 15.0 | 18.0 | 14.0 | 26.0 | 42.0 | 132.0 | 45.0 |
CL125-2H-10 | 10.5 | 20.0 | 16.0 | 29.0 | 42.0 | 135.0 | 45.0 |
CL125-2H-12 | 13.0 | 20.0 | 16.0 | 29.0 | 42.0 | 135.0 | 45.0 |
CL125-2H-14 | 15.0 | 20.0 | 16.0 | 29.0 | 42.0 | 135.0 | 45.0 |
CL150-2H-12 | 13.0 | 22.0 | 17.0 | 31.0 | 50.0 | 150.0 | 45.0 |
CL150-2H-14 | 14.0 | 22.0 | 17.0 | 31.0 | 50.0 | 150.0 | 45.0 |
CL180-2H-12 | 13.0 | 23.0 | 18.2 | 33.0 | 50.0 | 150.0 | 45.0 |
CL180-2H-14 | 14.0 | 23.0 | 18.2 | 33.0 | 50.0 | 150.0 | 45.0 |
CL200-2H-12 | 13.0 | 26.0 | 20.0 | 37.0 | 52.5 | 150.0 | 45.0 |
CL200-2H-14 | 14.0 | 26.0 | 20.0 | 37.0 | 52.5 | 150.0 | 45.0 |
CL250-2H-12 | 13.0 | 28.0 | 22.0 | 40.0 | 50.0 | 150.0 | 45.0 |
CL250-2H-14 | 15.0 | 28.0 | 22.0 | 40.0 | 50.0 | 150.0 | 45.0 |
CL325-2H-12 | 13.0 | 32.0 | 25.0 | 46.0 | 68.0 | 180.0 | 45.0 |
CL325-2H-14 | 15.0 | 32.0 | 25.0 | 46.0 | 68.0 | 180.0 | 45.0 |
CL400-2H-12 | 13.0 | 37.0 | 30.0 | 54.0 | 60.0 | 180.0 | 45.0 |
CL500-2H-12 | 13.0 | 40.0 | 31.0 | 57.5 | 60.0 | 180.0 | 45.0 |
