Bornes à broches serties simples isolées en nylon
Matériau :
• Corps de la borne : Cuivre
• Revêtement : Étain
• Isolation : PA66/Nylon
Résistance maximale à la température : 105℃

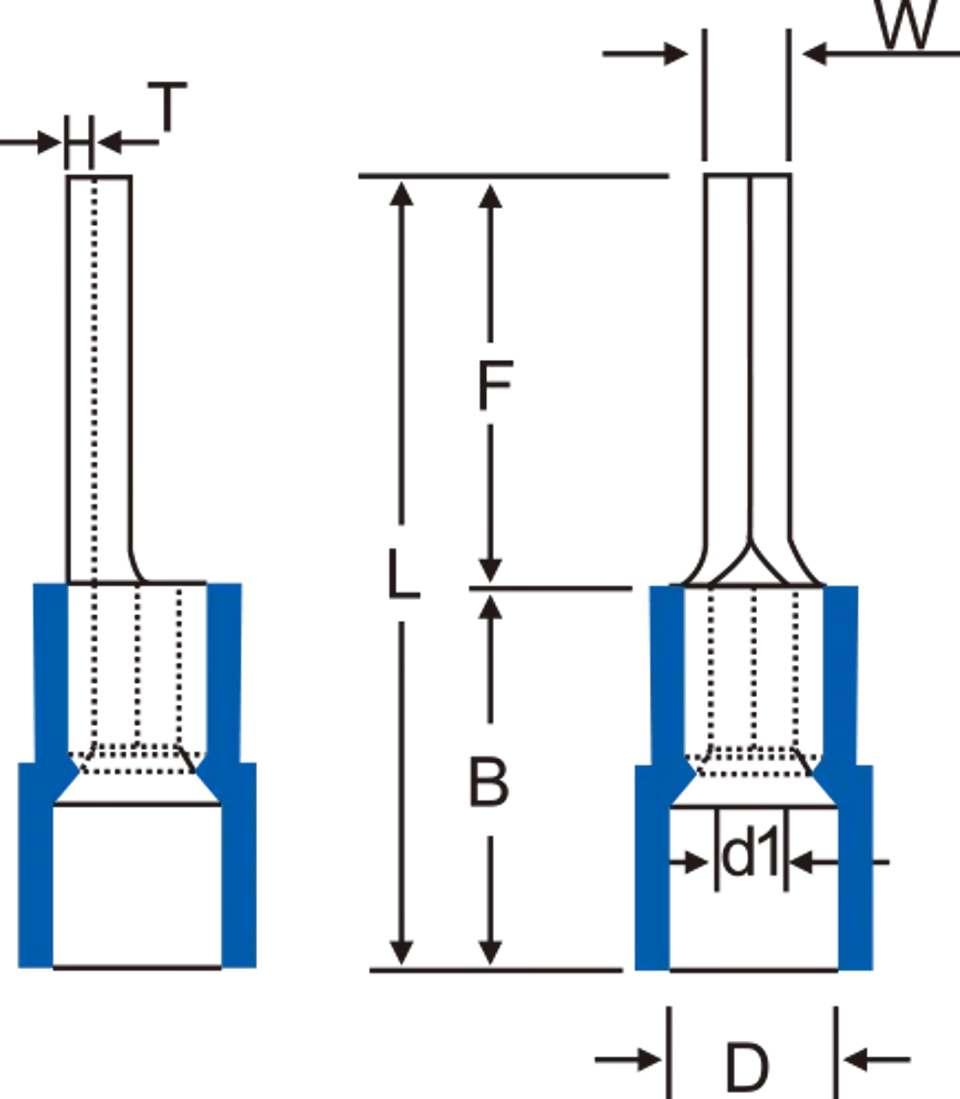

Dessin dimensionnel :
Paramètre :
| Numéro d'article | Dimension (mm) |
Pcs/
Emballage |
Couleur | Outils | Explication | ||||||
| W | F | L | B | D | d1 | T | |||||
| PTNY 0.5-10 | 1.4 | 10.0 | 17.7 | 7,7 | 2,8 | 1,2 | 0,5 | 1000 | Jaune | / |
Gamme de fils :
0,2-0,5 mm² A.W.G. : (26-22) Courant max. = 9 A |
| PTNY 1,25-9 | 1,9 | 9,0 | 20,0 | 10,5 | 4,3 | 1,8 | 0,75 | 1000 | Rouge | HS-30J |
Gamme de fils :
0,5-1,5 mm² A.W.G. : (22-16) Max. courant = 19 A |
| PTNY 1,25-10 | 10.0 | 21,0 | |||||||||
| PTNY 1,25-12 | 12,0 | 23,0 | |||||||||
| PTNY 1,25-13 | 13,0 | 24,0 | |||||||||
| PTNY 1,25-16 | 16,0 | 27,0 | |||||||||
| PTNY 1,25-18 | 18,0 | 29,0 | |||||||||
| PTNY 2-9 | 1,9 | 9,0 | 20,0 | 11,0 | 4,9 | 2,3 | 0,8 | 1000 | Bleu | HS-30J |
Gamme de fils :
1,5-2,5mm² A.W.G.:(16-14) Max.courant=27A |
| PTNY 2-10 | 10.0 | 21,0 | |||||||||
| PTNY 2-12 | 12,0 | 23,0 | |||||||||
| PTNY 2-13 | 13,0 | 24,0 | |||||||||
| PTNY 2-18 | 18,0 | 29,0 | |||||||||
| PTNY 3,5-12 | 2,8 | 12,0 | 25,5 | 13,5 | 6,3 | 3,0 | 1,0 | 500 | Noir | HS-30J |
Gamme de fils :
2,5-4mm² A.W.G.:(14-12) Courant max.=37A |
| PTNY 5.5-13 | 2,8 | 13,0 | 26.5 | 13,5 | 6.7 | 3.4 | 1,0 | 500 | Jaune | HS-30J |
Gamme de fils :
4-6mm² A.W.G.:(12-10) Courant max.=48A |
| PTNY 5.5-18 | 18,0 | 31.5 | |||||||||
